A2 5.8Ghz 200Mw FPV Transmitter Raceband 600TVL 1/4 Cmos Mini FPV Micro

All in one vtx + camera + antenna, plug and play, ready to fly.

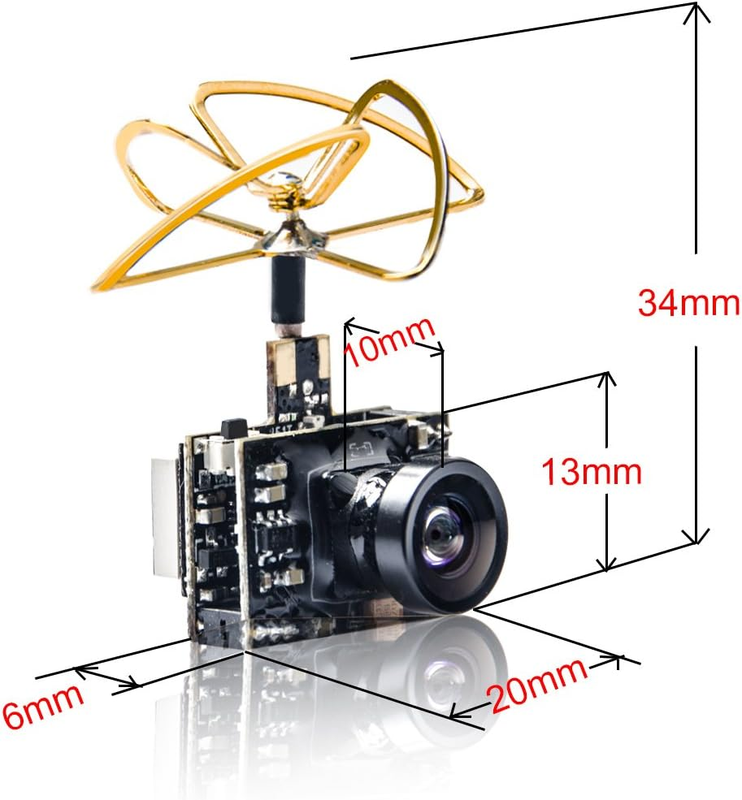

Super light weight:4.7g, Small size: 18.7*13mm(L*W)

Clover antenna for better signal transmission, easy to install. Installs in seconds

Requires 1S LiPo battery, Push button operation, single press to change channel,long press to change FR band.

Signal Range Suitable for Ultra Micro RC Aircraft, good quality image with zero latency, Button control instead of switches to change channels

Product Description
600TVL 1/4 Cmos Mini FPV Micro AIO Camera
Suitable for Ultra Micro RC FPV Quadcopter Drone
This AIO camera can be installed in minutes and ready to fly
Its signal range is ideal for park flyers or racing quads
Integrated booster circuit prevents motor and servo interference
All in one vtx + camera + antenna Specification:
Output power: 200mW
Input power: 3.2–5V
Current consumption:3.2V-5V,500mA(type)
Camera resolution: 600TVL
Video system:NTSC
Mini illumination: 1 lux
Field of view: 120°viewing angle
Antenna dimensions: 22mm X 29mm
Antenna: right hand circular polarized
Frequency: 5.8GHz 5 bands 40 channels
Size: 18.7*13mm(L*W) Package includes:
1x A2 AIO FPV Camera
1x Cable
1x Manual
